Air column cushion packaging bags roll making machine
Air column cushion packaging bags roll making machine

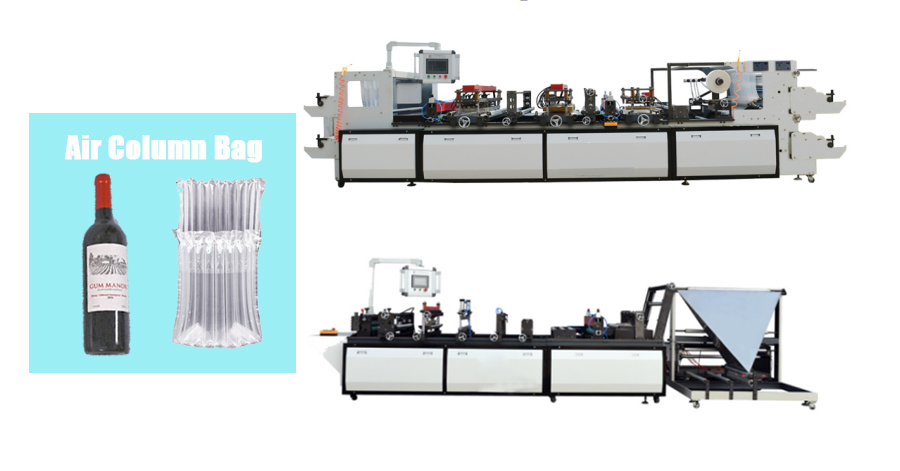

This is air column bag making machine It is a special equipment for producing various air column bags and air cushions withstand a weight of 60 to 120 kilograms without breaking, and it is an environmentally friendly product. This kind of packaging is widely used in various fields, such as red wine bottles, toner cartridges, household appliances, logistics, etc.
Brief Introduction This is air column bag making machine It is a special equipment for producing various air column bags and air cushions withstand a weight of 60 to 120 kilograms without breaking, and it is an environmentally friendly product. This kind of packaging is widely used in various fields, such as red wine bottles, toner cartridges, household appliances, logistics, etc.
Products Description
Model of machine
HS 1200
Max. Feeding Film Diameter:
￠600(about 2000 meters)
Air Chamber Pressing Speed:
12-25 meters /min (Adjustable)
Feeding and Rewinding Air Shaft Diameter:
￠74mm
Width of bag making
≤50m/min
Total Rated Power:
Machine A+B: 14.5KW+3.2KW
Max. Film Width:
1200mm/1400mm
Total Machine Weight:
Machine A+B+Triangle: 2700KGS+1800KGS+900KGS
Packaging Film Material:
PE Co-extruded Film, etc.
Feature 1.The main control circuit is jointly controlled by imported PLC and frequency converter, with good man-machine interface, intuitive and convenient operation
2.The whole machine is controlled by a frequency converter, with a wide range of frequency conversion and speed adjustment, realizing stepless speed change.It can be used immediately after adjustment, perfect match.Through the control of double film unwinding independent motors and tension controller, the smoothness and efficiency of film unwinding operation are greatly improved.
3.Expansion shaft mechanism is adopted for rewinding and unwinding, which is convenient for loading and unloading.
4.Automatic counting, alarm and other functions.
5.The unwinding of machine B adopts photoelectric automatic correction system to make unwinding more smooth and accurate.
This is air column bag making machine,suitable for PE co-extruded film and other materials The product produced by this machine has excellent support with Max Product speed: 50m/min.
Why choose us?
●13 years focus on pouch making machine!Our expericnec is your advantage!
●Direct manufacturer(own factory)!
●Pouch making machine get Japan and European engineer’s praise!
●480 set machine installed!
●2 years warranty time!
●Origin Idea ,design by our own engineer,accept OEM or ODM!
●Highed skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Photos and videos can be taken while testing the machine, so that you can check the specifications and quality on line!
●Qualified machine under global safety standards to guarantee production safety and workers security.
Know more about our machine details, service and price, pls contact us !
