Bag (Pouch)Making Machine for Three-side-sealing Stand-up Zip Lock Bag(Pouch)
Application
High Speed stand-up zip lock bag machine is widely used to produce three-side-sealing bag, one single web stand-up zipper pouch, 3rd roll fim insert bottom doy pack,quad seal bags for foods packaging, goods storage, parts loading and others. Characterized by five or seven servo motors, the machine will run smoothly in high speed.
3 Side Seal Stand up Zipper Bag & Quad Seal Bag Making Machine Technical Parameter
Material
BOPP, PET, CPP, PE, nylon, aluminum foil and other composite films.
Bag Making Capacity
This machine is suitable for making 3-side seal bag, 3-side seal stand up bag,4 side seal bag.
3-side seal bag : Max bag making speed :250 section/min
Max film speed: 60m/min
Stand up bag: Max bag making speed :160 section/min
Max film speed: 60m/min
3-side seal zipper bag: Max bag making speed :160 section/min
Max film speed: 60m/min
3-side seal stand up zipper bag: Max bag making speed :140 section/min
Max film speed: 60m/min
4- Side Seal bag：Max bag making speed :140 section/min
Max film speed: 60m/min
Bag type
3 side -Seal Bag, stand up doypack bag(One single web style,folding bottom) with or without zipper,Quad --Seal Bag，4- Side Seal bag
Width And Length Of The Raw Matterial
Bag Making Speed
Bag size
Standard type 3 side seal stand up zipper bag making machine includes the following function
Some Parts Showing Of The Picture
10mm steel plate as machine frame
World famous brand bearing from Japan & Germany
Japan Panasonic PLC
Italy famous brand register system for face panel and back panel printing
Taiwan Longyi Deviation correction
Machine Detail Showing
1.Unwinder and constant tension system
2.Servo motor traction
3.Hole punching for bottom inner firm sealing,Bottom folding for stand up function
4.Bottom inserting device from 3rdroll (optional function)
5.Longitudinal sealing for zipper and cooling (For zipper bag use )
6.Longitudinal sealing and cooling for sealing the bottom.
7.Edge trimming and waste edge collection
8.Ultrasound Weldingfor zipper both ends and sealing
9.Servo motor traction,photoelectric tracking and positioning
10.Transversal sealing and cooling device, cooling for zipper both ends
11.Hand hole punching device (optional)
12.Double Cutting
13. Host computer and outputting
Doypack Bag Making Machine Optional Function
Serial
No.
Function
Yes or No.
A
Bottorm Inserting from 3rd roll
For small bag, can do 2pc/cycle
B
Main Servo:
Keep the machine more stable, lower maintenance cost.
C
Why use double cutting?
Make the cutting edge is more smooth and beautiful, better pouch quality .
D
Double unwinder:
It is used for different material, one is alu lamination film, the other is clear film.
E
Register tracking for double unwinder and both film with printing design. This cost include double unwinder system.
F
Hand hole, it requires big hole puncher.
G
Remote control and Mobile connection:
Manager person can check the production data every day from mob, and we can solve in China if any program problem.
H
For bottom inserting from 3rd roll, do you need additonal 2nd zipper sealing function?
I

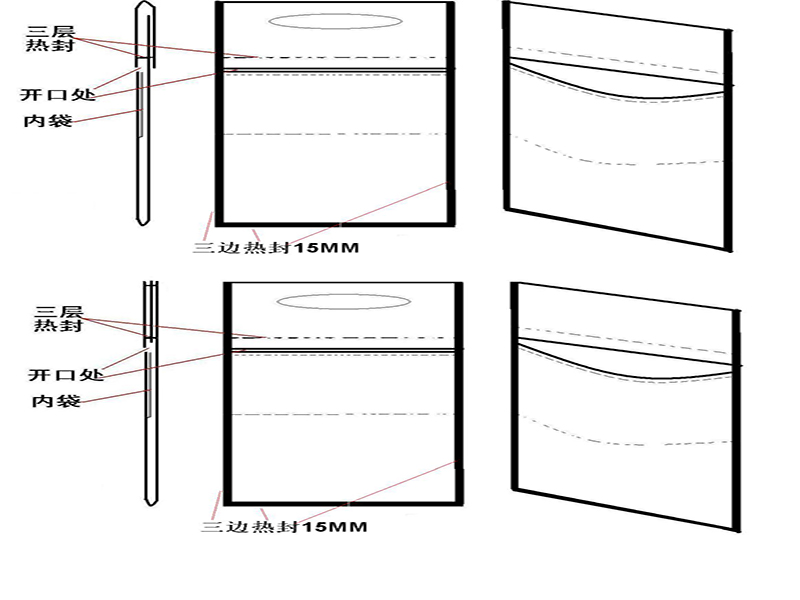

Additional pocket zipper function
J
Additional Slider Zipper Function
K
Material Storing Device: While change another roll raw material, no need to stop the machine.
L
Multi-hole punching device ： most for fruit packing.
M
Degassing valves adding & sealing（For coffee bean or coffee powder bag use）
N
Bottom Type
Choosing
Doyen type
K seal
Pellow seal
3 Side Seal Stand Up Zipper Bag Making Machine Optional Function
· Hand hole
· Bottom Arc
· Double Cutter
· Main Servo
· Material Storing Device
· Register Tracking
· Remote Control & Mobile Connection
· Automatic Pouch -Stacking
Stand Up Pouch Making Machine Details Structure
Unwinding devices:
●Deviation correction for unwinding: automatic deviation correction in double lines
●Unwinding tension: automatically consistent tension, rotary encoder, magnetic powder brake and air shaft
Control devices:
●Automatic control system with consistent tension
●Temperature control: PC controls temperature in 16 lines
●Electrical control: Panasonic PLC control & touch screen
●Temperature control: precision of PC≤±2℃
Sealing devices:
● Longitudinal heater :(full length 880mm) 2set
Longitudinal colling plate :(full length 470mm) 2 set
●Transverse heater : full length 640mm, effective 600mm----3set
2) Air source(0.3cbm/min): air compressor, air dryer and air tank
3) Water chiller :3HP
Machine parameters:
●Machine body is in black and under stainless steel covers
●Voltage: three-phase alternating current with 380V 50Hz
●Total power: 40kw
●Dimension: length*width*height:16000*2000*2000mm
●Weight: 6500kg
Workshop Picture
Common FAQ Questions
1. This three side sealstand up zipper bag making machine is suitable for which materials?
Co-Extrusion film, Multi layer lamination film of polyester, BOPP and CPP.
2. Except 3 side seal bag, 3 side seal zipper bag, stand up zipper bag, can it make other type bags?
Yes , it can also make quad seal bag .
3. Which advantage does your machine have ?
1) Unique design for safety operation , protect the worker’s hand, no cutting risk
2) PLC by Japan Panasonic. Other servo motor , air cylinder are all famous brand.
3) Warranty : 2 years
4. How many years have you make 3 side seal bag machine?
16 years+
5. How we know if your company is reliable and credit?
Our company started from 2008, exported 30+ countries, Credit is AAA grade .Our eim is to help each customer to reach success and guarantee good running.
6. Do you supply site training ?
Yes, after the machine arrive there, we can dispatch engineer for guiding the installing and site training.
7. During using period, if any problem, how do you solve?
We organize on-line discussion, video guiding , solve customer’s question in first time.
8. Can we know every day’s production data?
Yes, you choose the additional function for remote control. We will add this function for you.
Your mob connect with machine, you can know every day’s production data.
9. If any problem for the program, can you solve immediately?
Yes, if you choose remote control function while order, we will add this function. We can know if the programe is problem there.
10. After warranty time, if problem, will you help?
Our company has been more than 17 years,we supply lifelong compensable service.
11. We need to buy some easy-broken spare parts while order the machine?
Usually we give some easy-borken parts and installing tools for free. If you want to keep some as spare , we can give you additional spare parts list for your choosing .
3 Side Seal Stand Up Zipper Pouch Making Machine Working Video
How Do We Do Technical Support?
Haosen is Committed to do excellent technical support!
1. We supplies comprehensive product manuals that include all the information required :
1) Machine assembling
2) Power Connection
3) Main Operate
4) Troubleshoot
5) Circuit Diagram
6) Spare Parts List
The manuals are available in conventional print form as well as digital format.
2. Factory-based training or customer’s site training can be organized, giving your opertors about safe operation, maintenance, changeover procedures etc.
3.On line guiding can be organized at any time if there is any trouble during the using.
Why choose us?
●17 years focus on pouch making machine !Our expericnce is your advantage!
●Direct manufacturer(own factory)!
●Pouch making machine get Japan and European engineer’s praise!
●480 set machine installed!
●2 years warranty time!
●Origin Idea ,design by our own engineer ,accept OEM or ODM!
●High skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Photos and videos can be taken while testing the machine, so that you can check the specifications and quality on line!
●Qualified machine under global safety standards to guarantee production safety and workers security.
