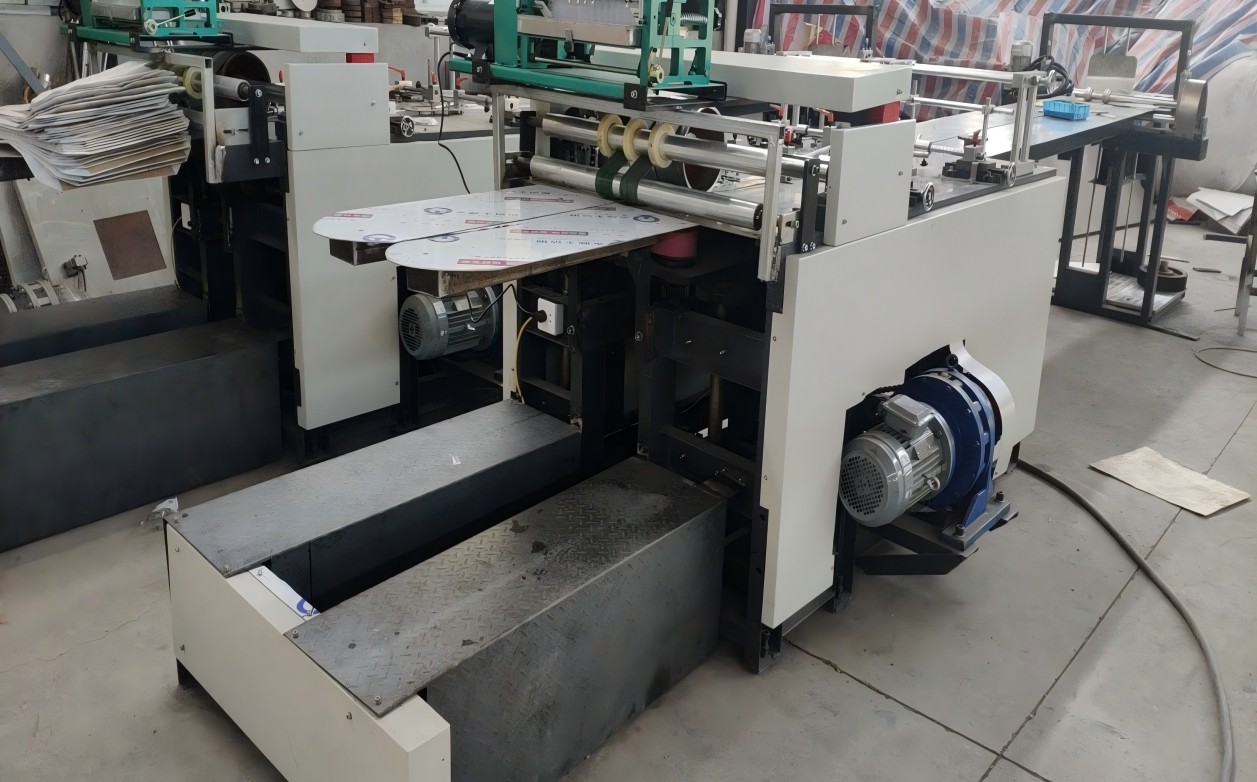

Economic Type Valve Kraft Paper Cement Bag Making Machine
Economic Type Valve Kraft Paper Cement Bag Making Machine
Economic type valve kraft paper bag making machine is composed of kraft paper printing & tube making machine,kraft paper slitting machine ,automatic valve making machine and semi auto bottom forming machine. The machine can produce different types paper bags.For example,it can produce cement paper bag,multi-layer paper sack,dry building mixes material sack and sack for mortar, sand, tile adhesive,gypsum, grouts and so on.
Economic Type Valve Kraft Paper Cement Bag Making Machine
Kraft Paper Valve Cement Making Process
The Whole Kraft Paper Valve Bag Production Line Includes
1. Kraft paper printing & tube making machine , production speed 100-120pc/min
2. Kraft paper slitting machine for Slitting the bottom trip and valve paper
3. Automatic valve making machine
4. Semi auto bottom forming machine
Kraft Paper Printing and Tubing Machine Introduction
1) Bag Tube Making Process
2) Main Parameters
Production capacity
Stable speed
--50-120 pcs bag plain end bag tubes / min (the production speed is determined by
the bag length and the quality of paper)
Finished bag width
380-630mm, free adjustment
(Customized in bag size range)
Bag side
Straight or folding side (“M” side gusset
width size: 0-140mm)
Bag length
Free adjusted,
PLC servo control the cutting length. Touch screen freely set the length
Max layers
4(1-4 layers supported)
Total Power
25 KW
Machine Dimensions
Length15m×Width2.4 m× Height 2.1m
Machine weight
14 ton(around)
Operators:
1- 2
Power supplycondition
380V,50HZ,3P ,4 L,AC
Control method
DELTA servo control system
Outer layer Material
Kraft paper (White, brown, yellow, pink
etc.)
Inner layer Material
Kraft paper, PE film, Metal foil paper
Kraft paper gramweight
75-120 gsm
Max diameter ofpaper reel
1200mm
Max paper width
1250mm
Paper reel inner corediameter
76mm
Cutting bags counting
Automatic photoelectric counting
In line printer
Flexo stagger printer
Max Printing colors
4(1-4 colors supported)
Small Valve Tube Machine
Operator
1-2
Variable frequency driver
Frequency conversion motor
3.5KW
Intermediate relay
HH52P AC200V
AC contactor coil
AC220V 60A；Schneider
Button：Schneider
Indicator light (green)
Schneider
Solid state relay
Single Phase 1.5KW
Alarm lamp
Sound, Light
Proximity switch
2
Switching power supply
DC24V 2.1A
Equipment weight
≈1.6t
Overall dimension
L 2.4m*W 0.9m*H 1.0m
Both suitable to make valve tubes and paper stripes.
Semi-Automatic Bottom FormingMachine
Production Process
Machine Parameters
Dimensions
5 m long, 1.3 m wide, 1.6 m high
Power
4 kW
Bag width
300 ~ 600㎜
Bag length
450 ~ 1100㎜
The bottom width of
95-150mm
Efficiency
By labor factor, conventional about 25 per minute or so
Equipment running speed
variable frequency speed regulation
Power supply
380V 50HZ
Electricity
3 PH
Common FAQ Questrions
1. How we get an effective quotation?
Pls tell us the following question , we can work out an effective quotation:
1) Do you need printing function ? and how many color printing ?
2) You want to make how many layer kraft paper and one layer film?
3) If you have sample, pls show us the the sample picture, specially the printing design and the bottom structure.
4) Pls tell us the production capacity that you need? How many pcs per hour?
2. When will you start to make these machine?
Since 2012
3. How many set machine have you made?
200+ sets.
4. How much is the total power installing capacity ?And workshop size? Operator number?
Item No.
Product Name
Installing Power (kw)
Machine layout Size
Operator Number/set
1
Automatic printing& Tube Making
Machine
33
20m*2.1 m* 2.3m
2
2
Automatic Slitting Machine
8
5m*1.8m*1.9m
1
3
Automatic Valve Making
Machine
6
6.0m*1.2m*1.7m
1
4
Semi-Auto Bottom Forming Machine
4
5m * 1.3m * 1.6m
3
Total
43
7
5. How long is warranty?
1 year.
6. Do you supply turn-key project?
Yes. We supply from proposal design, flat bottom valve bag production line quotation,workshop layout ,steel structure design and supply, engineer site training , after sales service in time, guarantee the success of the whole production line.
7.Can I produce pre printed tubes on the tuber?
Yes , you can .
8.Is the tuber equipped with step end unit, or just flush cut?
Yes, we have two type mold kraft paper tuber machine. One is for flush cut, the other is for both flush cut and step end cut.
How Do You Do Technical Parameters?
Haosen is Committed to do excellent technical support!
1.We supplies comprehensive product manuals that include all the information required :
1)Machine assembling
2)Power Connection
3)Main Operate
4)Troubleshoot
5)Circuit Diagram
6)Spare Parts List
The manuals are available in conventional print form as well as digital format.
2.Factory-based training or customer’s site training can be organized, giving your opertors about safe operation, maintenance, changeover procedures etc.
3.On line guiding can be organized at any time if there is any trouble during the using.
Why Choose Us?
●17 years focus on pouch making machine !Our experience is your advantage!
●Direct manufacturer(own factory)!
●Pouch making machine get Japan and European engineer’s praise!
●480 set machine installed!
●2 years warranty time!
●Origin Idea ,design by our own engineer ,accept OEM or ODM!
●High skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Photos and videos can be taken while testing the machine, so that you can check the specifications and quality on line!
●Qualified machine under global safety standards to guarantee production safety and workers security.
The kraft paper laminated on PP woven bag production line includes three steps, the first step is to print on the raw material, and then laminated with kraft paper and become to tube material. And the second step is to cut the tube material. The last step is to fold and seal bottom line.But there are two solutions for this step. The first kind is manually convey material and sew the bottom line, and the second kind is automatically convey material and sew the bottom line.
Type HS-1300SA Slitting machine is controlled by Variable frequency.And we supply it with good price based on quality guarantee. Meantime, It has the characteristics of high-speed.
The stand-up bags filling machine is the
ideal equipment for filling the stand-up bag and screwing the lid. It is
suitable for bagged sucking jelly, soy milk products, shampoo, fresh milk,
yogurt, pure water, juice, ice cream, cooking oil, seasoning, washing chemical.
Liquid material.
