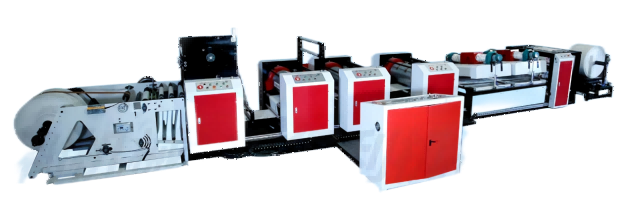

How to Improve Printing Results on Roll-to-Roll PP Woven Bag Printing Machines Without Changing the Printing Plate Roller
When operating a roll-to-roll PP woven bag printing machine, printing quality can sometimes be improved without replacing the printing plate roller. Two key factors deserve special attention: color brightness and registration stability.
One of the most effective ways to make printed colors look brighter and more vivid is to increase the production speed appropriately.
This may sound counterintuitive, but water-based ink has a particular characteristic: within a suitable operating range, increasing the printing speed can help produce brighter and more vibrant colors.
Therefore, if the printed color appears slightly dull, operators can try gradually increasing the machine speed while keeping other parameters stable.
Of course, the speed should always remain within the machine's recommended operating range. Excessive speed may negatively affect printing quality and should be avoided.
Another important factor is registration accuracy, especially when the printed patterns need to align precisely.
If the printed pattern shows a horizontal deviation, one possible troubleshooting method is to switch the web guiding system on the unwinding unit from automatic mode to manual mode and conduct a test.
This can help determine whether the automatic web guiding system is contributing to the horizontal registration problem.
If the deviation occurs in the longitudinal direction, pay close attention to the tension of the PP woven fabric.
The fabric between the front and rear pulling units needs to remain sufficiently tensioned during printing. However, the tension should not be excessive.
Different woven fabric rolls can have different levels of tightness because of differences in the weaving process and fabric structure. Therefore, the appropriate tension coefficient should be adjusted according to the actual condition of each fabric roll.
When printing quality is not ideal, replacing the printing plate roller is not always the first solution.
Before making major equipment changes, operators can first check:
· Printing speed — adjust appropriately to improve color brightness.
· Horizontal registration — test whether switching the unwinding web guide to manual mode improves stability.
· Fabric tension — make sure the material is sufficiently tensioned between the pulling units without excessive tension.
· Tension coefficient — adjust it according to the tightness and characteristics of different PP woven fabric rolls.
In many cases, careful adjustment of machine parameters and material tension can significantly improve printing performance without changing the printing plate roller.
For manufacturers producing PP woven bags, understanding the relationship between printing speed, fabric tension, web guiding, and registration accuracy is essential for achieving stable and consistent printing results.
