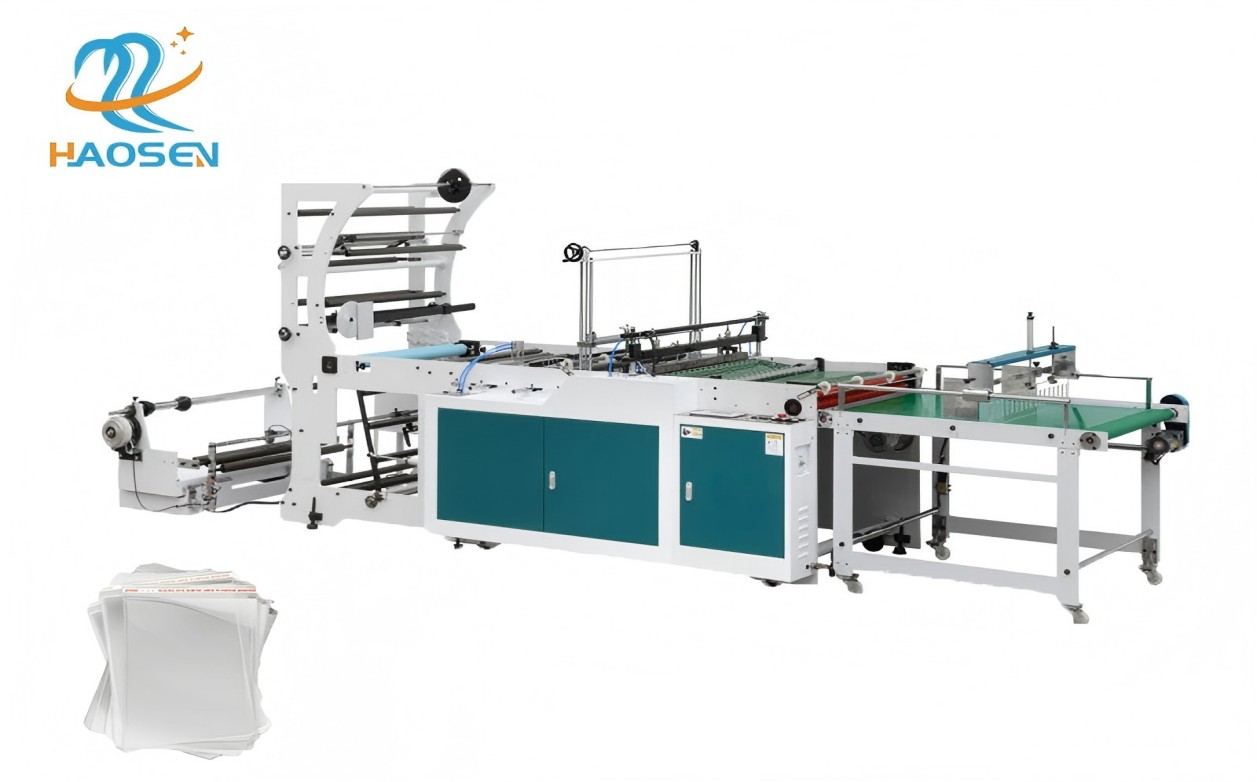

This is BOPP bag making machine . Mainly produces Side sealing & Cutting Poly bag machine.It inclueds BOPP/OPP self adhesive bag making machine, flower knife bag/Book cover bag making machine.

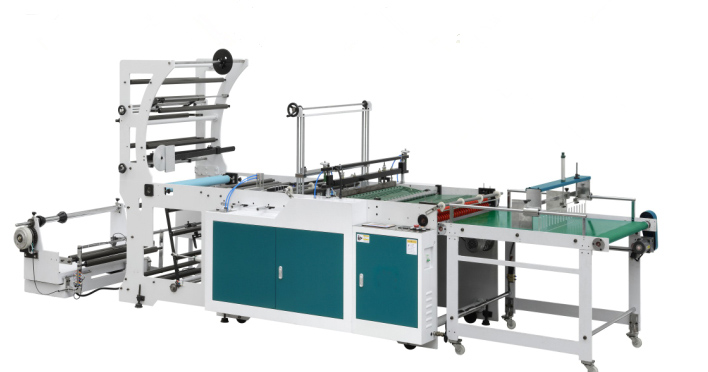

This machine is specially design for making Side Sealing bag automatic.It shows the best technic of servo motor and the latest type of mechanism structure, it has has the excellent speed of 30-140pcs/min. Standard Machine Function Includes: (1) Conveyor table (2) Bottom Inserting (3) Automatic Deviation (4) Adhesive tape
Optional Function : 1.Air Vent Hole Punching (For vegetable fruit bag use) 2. OPP Header Bag Device 3. Hand hole 4. OPP flower knife 5. Book cover function (according to customer’s sample )
Technical Parameter
Model No
HS-RQD-800
Max.Width of bag making
780mm
Max.Length of bag making
40-1000mm
Machine speed
30-140pcs/min
Thickness of film
0.02-0.20mm
Tolerance
±1mm
Power Required
6.5KW
Machine size
5000*1350*1650mm
Machine N.W
1550kg
Bag Sample

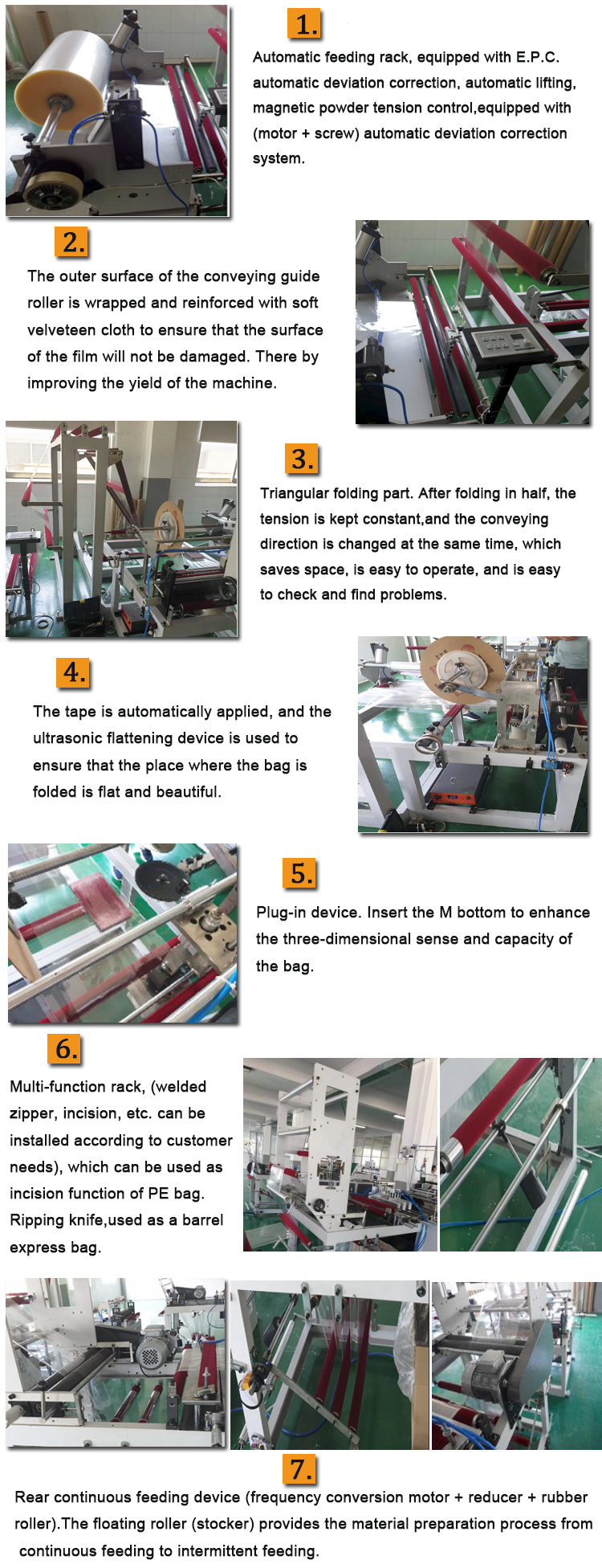

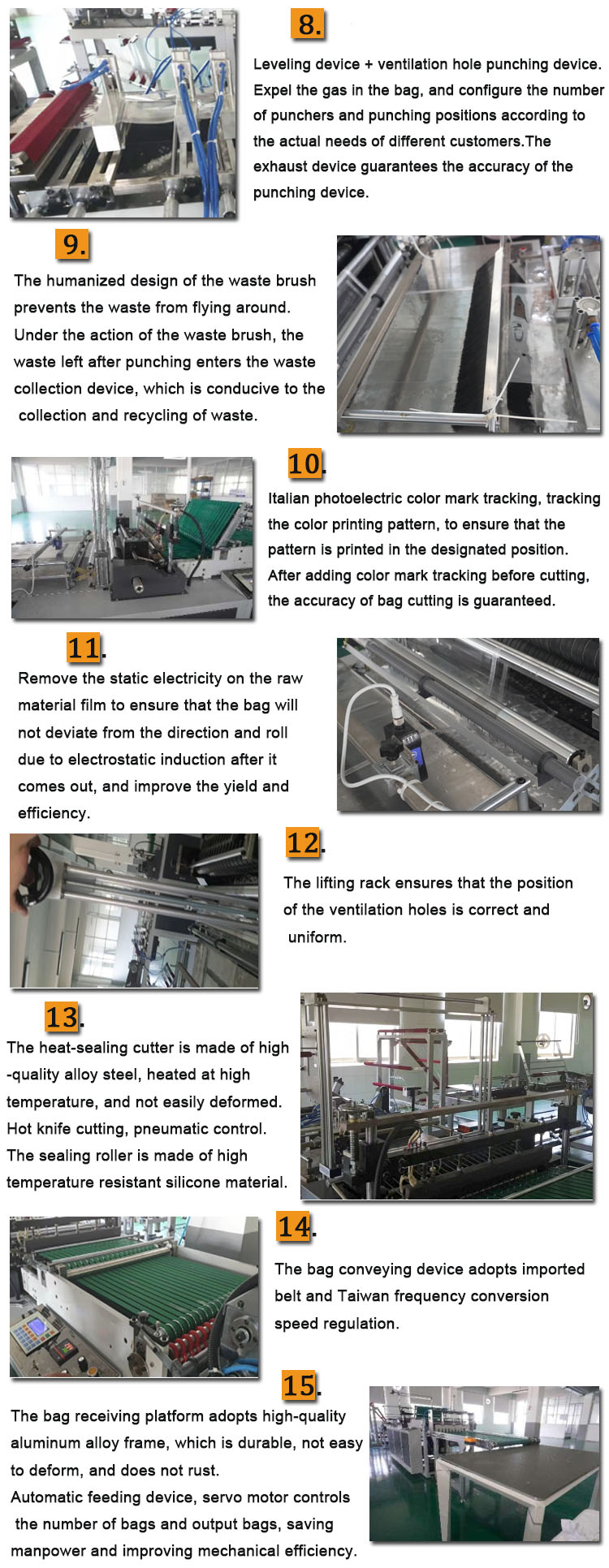

Side sealing Bag making Machine Machine Details
Why choose us?
● 17 years focus on pouch making machine !Our experience is your advantage! ●Direct manufacturer(own factory)! ●Pouch making machine get Japan and European engineer’s praise! ●480 set machine installed! ●2 years warranty time! ●Origin Idea ,design by our own engineer accept OEM or ODM! ●High skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Photos and videos can be taken while testing the machine, so that you can check the specifications and quality on line! ●Qualified machine under global safety standards to guarantee production safety and workers security. Know more about our machine details, service and price, pls contact us !
Our BOPP bag making machine factory is located in Ruian Zhejiang. Our factory mainly produces Side sealing & Cutting Poly bag machine.It inclueds BOPP/OPP self adhesive bag making machine, DHL Fedex Express/Courier bag making machine.
Full Automatic vacuum compression storage bag (space save vacuum sealed storage bag) machine is used to produce vacuum compression bag with high production speed.
Our BOPP bag making machine factory is located in Ruian Zhejiang. Our factory mainly produces Side sealing & Cutting Poly bag machine.It inclueds BOPP/OPP self adhesive bag making machine, DHL Fedex Express/Courier bag making machine.
This multifunctional non woven bag making machine is suitable for making T-shirt & D-cut & Drawstring bag with non woven fabrics. It is a high efficient bag making line.
Cold And Hot Integrated Cutting, Folding And Sewing Machine For Cement Bag
Machine Introduction
1.Machine Technical Parameter
Diameter of the roll fabric
≤1200mm
Finished product bag cutting width
350-550mm
Finished product bag-cutting length
500-920mm
Fold height
90-120mm
Bag-cutting speed
30-35mm
Bag cutting accuracy
±1mm
Total power
16KW
Installation dimension
9000mm*5000mm*1400mm
2.Machine Function
lThis machine adopts automatic PLC control, touch screen operation, servo drive, and can be selected as either cold-cutting or hot-cutting.
lThe first blade allows for one-button switching between cold and hot cutting, ensuring uniform and smooth folds.
lThe cutting blade is made of imported materials; the hot-cutting blade does not deform and achieves smokeless and environmentally friendly operation.
lThe cold-cutting blade is made of imported materials, making it durable and practical.
lFold size is easily adjustable, and bag length specifications can be adjusted with one button.
lFeatures include automatic feeding, automatic deviation correction, automatic alignment, automatic counting, batch feeding, thread breakage alarm, and automatic stop prompts for malfunctions and joints.
lThis machine is suitable for putty powder bags, calcium powder bags, single-color bags, double-color bags, and laminated bags, etc.
Configuration List
Configuration List
NO.
Name
Brand
Specification
Qty
Unit
Remark
1
Constant Magnetism Low-Speed Synchronous Motor
110TDY115-2(110W)220V
3
Set
2
Three-Phase Asynchronous Motor
YE2-90S-6 0.75KW 380V
1
Set
3
Three-Phase Asynchronous Motor
YE2-90S-4 1.1KW 380V/220V
2
Set
4
Worm gear reduction motor
YE3 8024 0.55KW 380/220V
NMRV50-5
1
Set
5
Gear-reduction variable frequency motor
GH22-400W-140-30K-U-B 220V/380V
3
Set
6
Servo motor + servo
DNBB18-003BK1AMS EPS-B1-0003BA-A000
1
set
7
Lead screw lifter
2
Set
8
Servo motor + servo
MS6H-80CS20B1-20P7 DS5L1-20P7-PTA
2
set
9
Servo motor + servo
130DNMB2-0003CKAM EPS-B1-0003BA-A000
1
set
10
Cycloidal motor
JXWY-2 0.75KW
3
set
11
Micro Motor
51K120GU-15KUF
1
Set
12
Vortex Air Pump
XGB-4KW
1
Set
13
Air Cylinder
SC125*250-CA-Y
2
Set
14
Air Cylinder
TGC40*75
2
Set
15
Air Cylinder
SCJ63*100-50
1
Set
16
Air Preparation Equipment
AL4000-04
2
Set
17
Air Cylinder
MBL25*75
2
PCS
18
Air Cylinder
MBL32*35CA
4
PCS
19
Air Cylinder
MBL32*75CA
3
PCS
20
Air Cylinder
MA32*10SCA
1
PCS
21
Solenoid Valve
4N210-08-B Connector type DC24V PT
20
PCS
22
Plc Control System
DVP-80EH
1
set
23
Human-Machine Interface (Touch Screen
DOP-BO7S411
1
set
24
Switching Power Supply
IDEC
OS5R-SG24
1
set
