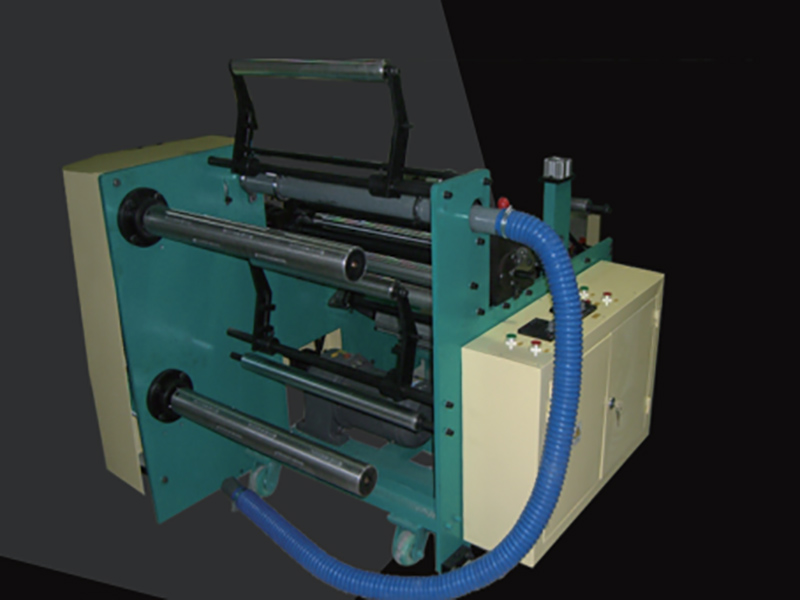

Tube And Bag Winding Machine For Medicine

The film edge collecting machine is used to roll and collect film edge from bag machine.

The film edge collecting machine for cutting machine is utilized to roll and collect film edge from cutting machine.

Automatic Puching& Die cutting machine for flexiable package raw materialis widely used for producing various lids, labels and easy open packages for yogurt, jelly pudding,cheese, cup noodle, coffee, water, juice, tea, beer, wine, ice cream, dry milk, detergent, lens blister, medicine and etc.

This Central & Bottom sealing pouch making machine is suitable for making the middle & bottom sealed pouches.They are widely used as Bread bag, candy packaging,napkin packaging pouch, toothbrush independent pouches, biscuit bags, tooth sticker pouch etc.

 The PP woven bag flat wire extrusion machine using laminating technology, the surface of the woven bag is covered with a layer of film, which plays a protective role to provide additional protection and extend the service life ‌, and can also play a role in the appearance of the product. At the same time, compared with manual operation, this machine has the advantages of high efficiency, fast and labor-saving, which can greatly reduce labor costs and improve production efficiency.

Cold And Hot Integrated Cutting, Folding And Sewing Machine For Cement Bag Machine Introduction 1.Machine Technical Parameter Diameter of the roll fabric ≤1200mm Finished product bag cutting width 350-550mm Finished product bag-cutting length 500-920mm Fold height 90-120mm Bag-cutting speed 30-35mm Bag cutting accuracy ±1mm Total power 16KW Installation dimension 9000mm*5000mm*1400mm 2.Machine Function lThis machine adopts automatic PLC control, touch screen operation, servo drive, and can be selected as either cold-cutting or hot-cutting. lThe first blade allows for one-button switching between cold and hot cutting, ensuring uniform and smooth folds. lThe cutting blade is made of imported materials; the hot-cutting blade does not deform and achieves smokeless and environmentally friendly operation. lThe cold-cutting blade is made of imported materials, making it durable and practical. lFold size is easily adjustable, and bag length specifications can be adjusted with one button. lFeatures include automatic feeding, automatic deviation correction, automatic alignment, automatic counting, batch feeding, thread breakage alarm, and automatic stop prompts for malfunctions and joints. lThis machine is suitable for putty powder bags, calcium powder bags, single-color bags, double-color bags, and laminated bags, etc. Configuration List Configuration List NO. Name Brand Specification Qty Unit Remark 1 Constant Magnetism Low-Speed Synchronous Motor 110TDY115-2(110W)220V 3 Set 2 Three-Phase Asynchronous Motor YE2-90S-6 0.75KW 380V 1 Set 3 Three-Phase Asynchronous Motor YE2-90S-4 1.1KW 380V/220V 2 Set 4 Worm gear reduction motor YE3 8024 0.55KW 380/220V NMRV50-5 1 Set 5 Gear-reduction variable frequency motor GH22-400W-140-30K-U-B 220V/380V 3 Set 6 Servo motor + servo DNBB18-003BK1AMS EPS-B1-0003BA-A000 1 set 7 Lead screw lifter 2 Set 8 Servo motor + servo MS6H-80CS20B1-20P7 DS5L1-20P7-PTA 2 set 9 Servo motor + servo 130DNMB2-0003CKAM EPS-B1-0003BA-A000 1 set 10 Cycloidal motor JXWY-2 0.75KW 3 set 11 Micro Motor 51K120GU-15KUF 1 Set 12 Vortex Air Pump XGB-4KW 1 Set 13 Air Cylinder SC125*250-CA-Y 2 Set 14 Air Cylinder TGC40*75 2 Set 15 Air Cylinder SCJ63*100-50 1 Set 16 Air Preparation Equipment AL4000-04 2 Set 17 Air Cylinder MBL25*75 2 PCS 18 Air Cylinder MBL32*35CA 4 PCS 19 Air Cylinder MBL32*75CA 3 PCS 20 Air Cylinder MA32*10SCA 1 PCS 21 Solenoid Valve 4N210-08-B Connector type DC24V PT 20 PCS 22 Plc Control System DVP-80EH 1 set 23 Human-Machine Interface (Touch Screen DOP-BO7S411 1 set 24 Switching Power Supply IDEC OS5R-SG24 1 set
