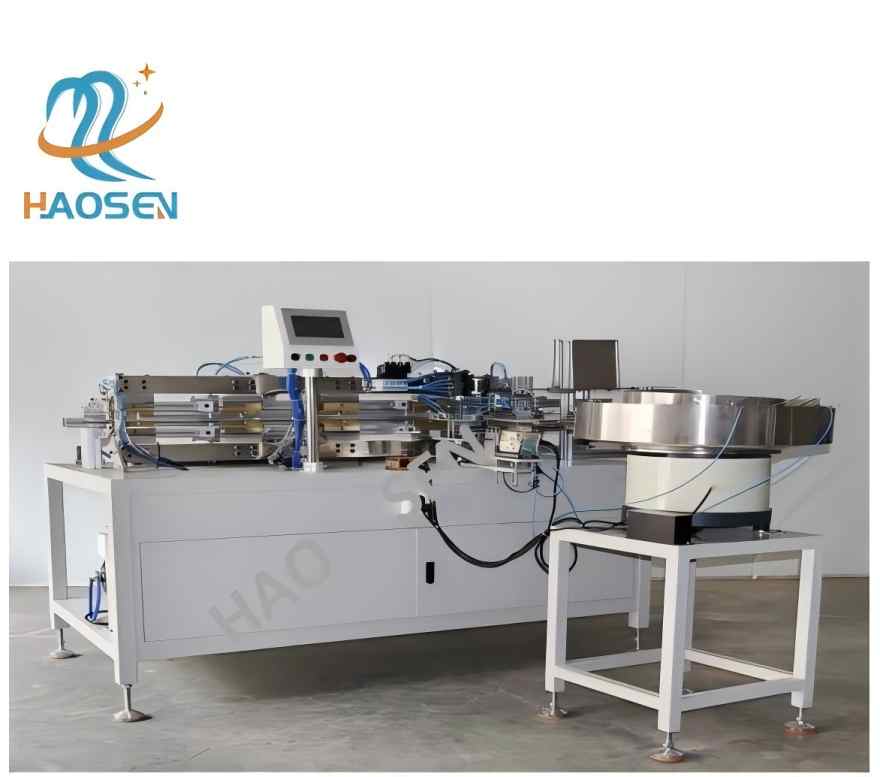

HS-YC-02Automatic Spout (Nozzle) Inserting & Sealing Machine is an indispensable equipment used for stand up pouch production line.It is used for inserting& sealing the spout to stand up pouch by fully automatic system consists of automatic pipe input sytem, pouch absorb system, heat sealing system,bag output system and central controlling system.Double working station design, double the production speed!High speed Spout sealing machine from Haosen!
HSYC-02 Automatic Spout pouch inserting sealing machine for stand up spout pouch making
Application
It is widely used to insert and seal spout to stand up pouch. Applicable to small packing bag for food beverage, condiment, daily chemicals, medical and chemical etc.
Machine Parameters Special sizes and style can be designed and customized
Suitable bag width
W：100-280mm, L 100-350mm
Spout size
8mm 、8.6mm 、10.6mm 、13mm 、16mm
（Modify according to customer requirements）
Pouch thickness
0.1mm-0.15mm
Voltage
220V/380/50HZ（Modify according to customer requirements）
Production speed
26-32pcs/min(depends on the product)
Machine dimension
1800*1100*1500mm
Machine weight
750Kg
Main configurations
No.
Description
Model
Brand
QTY
Unit
1
Air switch
NXB-63 1P C10
Zhengtai
8
pcs
2
NXB-63 2P C10
Zhengtai
2
pcs
3
NXB-63 2P C32
Zhengtai
1
pcs
4
Contactor
YJX2-3210
Yijia
1
pcs
5
Rail socket
5hole
China brand
1
pcs
6
Two position choosing
switch
XB2 20X/32
Yijia
1
pcs
7
Emergency button
XB2-01ZS
Yijia
2
pcs
8
Reset button
XB2-10BN
Yijia
4
pcs
9
Buzzer
24V
Yijia
1
pcs
10
Middle relay
YJ2N-GS 24VDC
Yijia
10
pcs
11
square access switch
12 φ（DC24V）
Okebuni
1
pcs
12
PLC
FX5V-3624
XINJIE
1
set
13
Line of communication
FX-3V（3 m）
XINJIE
1
pcs
14
Touch screen
PI3070IE
XINJIE
1
pcs
15
DC power
LRS100W-24DC
MW
1
set
16
Servo
0.75KW
XINJIE
1
set
17
Servo Driver
0.75KW
XINJIE
1
set
18
Vacuum negative pressuregauge
2
set
19
Fiber optic testing
1
set
20
Vacuum pump
0.75KW
China Brand
1
set
21
Temp-controller
China Brand
8
pcs
22
Solid
China Brand
8
pcs
23
Sealing mould cylinder
OMGP40*25
Airtac
8
pcs
24
Catching pouch cylinder
HY30-50
Airtac
1
pcs
25
Rotating cylinder
CPB2BW40*90
Airtac
1
pcs
26
Clamping pouch cylinder
SDA32*10
Airtac
2
pcs
27
Open pouch cylinder
Airtac
1
pcs
28
Install spout cylinder
Airtac
1
pcs
29
Clamp spout cylinder
Airtac
1
pcs
30
Feeding spout cylinder
Airtac
1
pcs
Product Description
Spout Inserting & Sealing Machine Includes 6 system Spout Inserting & Sealing Production processAdvantage 1.Raw material advance testing for hot sealing temperature & pressure as option ,that can enhance the qualification rate, lower wastage, save cost. Corner diagonal cutting (can cut different length ,no need additional die cutting machine ,save labor & cost.) Spout inserting position and angle adjusting (For same specification spout, one machine can finish both Top Inserting and Corner diagonal inserting by adjusting the bag angle .It is easy and simple, just require approx 5-10min ) According to customer’s bag sample and production speed, we can customize different machine to meet customer’s requirement. 2. Safe protection to operator While we open the door, the machine automatically stop to avoid any accident to harm workers.
3.Various types spout can be customized and ship with the machinetogether! Knowledge
1. What is the function of the spout bag machine with a conveyor belt?
Simply put, it's a receiving station. Workers don't need to collect finished bags from boxes; they can collect them sitting or standing.
It makes the process neater, easier to collect, and easier to inspect.
2.
1) Are spare parts for the spout bag machine easy to buy?
2) How long does it take to switch between different spouts?
3) What is the required air pressure (in MPa)?
4) Can it use PE, PET/AL/PE, or recyclable mono-materials?
5) Does it have a remote assistance function?
1) I don't know if spare parts are available locally. Usually, customers purchase some spare parts when ordering. We provide spare parts to customers, and they rarely request anything else.
2) Replacing takes about half an hour, but adjustment takes time. Replacing four sets of copper molds, four clamps, and adjusting the track and corresponding vibratory feeder takes about a day.
3) Air pressure 0.6-0.8 MPa
4) It can be done, but the required welding time and temperature are different. (Welding time and temperature are determined by the bag material)
5) Remote assistance function is available.
3. How many samples are needed for custom molds and trial runs for spout bags?
1000 pieces of each type
4.While i have 2 spout sizes, i have a total of 4 or 5 different spouts.. ike in 8.5mm spout, i have 1 option,but in 10mm spout, i have 3 different options Would ineed 4 sealers sets? Or 2 would be ok？
4. Molds are not interchangeable. For example, an 8.6mm nozzle and a 10mm nozzle are not interchangeable. Also, the 8.6mm nozzle may come from different manufacturers and is also not interchangeable.
5. Common faults and defect rates of ordinary and high-speed nozzle welding machines:
1) What are the most common defects during nozzle welding? For example, leakage? Deformation? What are the approximate defect rates for each?
2) What are some common equipment malfunctions?
3) Which of these two types of machines has a higher defect rate?
4) In case of a malfunction, which machine is easier to repair? What types of malfunctions typically occur?
5) Is there any statistical data on the defect rate during nozzle welding?
Ordinary Machine
If the bag is not placed correctly, the welding is crooked. If the bag is not opened wide enough, the inlet is blocked, and the welding cannot reach the correct position, resulting in defective products. This requires readjusting the bag, the opening, and the bag clamping position. Once adjusted, this problem will not occur.
The defect rate is approximately 1%.
Once adjusted correctly, it won't be a problem. Common faults that become more stable with use include loose suction cups, silicone heads falling off, and incorrect air pressure.
Molds are not interchangeable. For example, an 8.6mm nozzle is not compatible with a 10mm nozzle. Even within the 8.6mm nozzle, different manufacturers' nozzles may be involved, making them incompatible as well.
High-speed machines
A common issue is that if the nozzle isn't properly welded, the machine will reject it, causing leakage. A separate machine is needed to test for these problems. A pressure test can be implemented. Once the test is successful, stable production is fine.
The defect rate depends on the quality of the bags and nozzles. Good quality bags have a defect rate of 1/10,000, while most have a rate of 1/1000.
Common faults are minimal. The only issue is that with a large number of bags produced, frequent changes in scale waste time and productivity.
A Moroccan customer previously only produced one size of bag, and it ran without any problems for two years.
Suitable for producing one or two sizes.

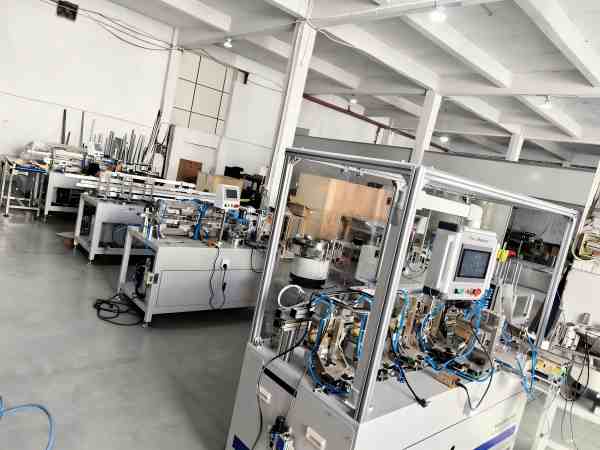

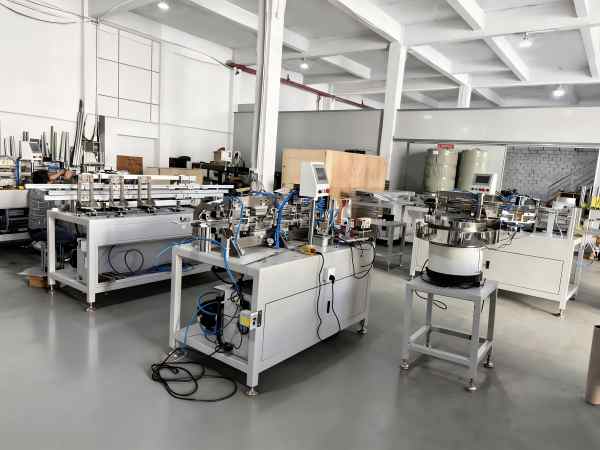

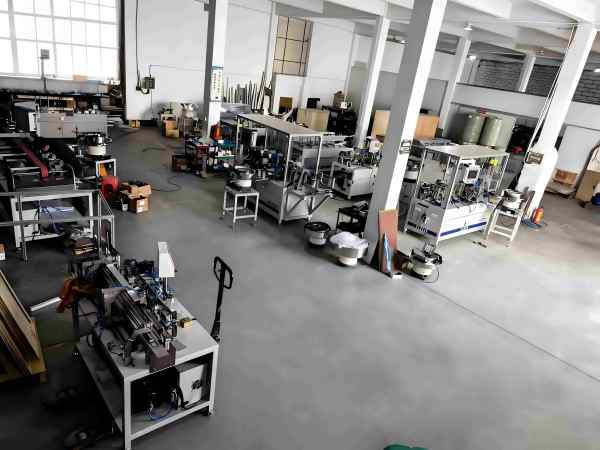

Workshop Picture
Why choose us?
●18 years focus on pouch making machine ! Our experience is your advantage!
●Direct factory! ●Pouch making machine get European engineer’s praise! ●480 set machine installed! ●Origin Idea ,design by our own engineer , accept OEM or ODM! ●High skilled engineer ,easy operation! ●Turn-key project, remote support on line! ●Qualified machine under global safety standards to guarantee production safety and workers security.
