HSZLD-600 Four-side Sealing, Stand Up Pouch with Valve Bag-in Box (BIB)-making Machine
HSZLD-600 Four-side Sealing, Stand Up Pouch with Valve Bag-in Box (BIB)-making Machine
The HSZLD-600 machine can produce four-side sealing, stand up pouch with valve Bag-in- Box （BIB) . This type bag can protect liquid from odor, moisture, light and oxygen and it also be used in wide fields. And applicable base material our company's four-side sealing, stand up pouch with valve Bag-in- Box （BIB) making machine are various, such as BOPP, COPP, PET, PVC, nylon and other plastic composite film, multi-layer co-extrusion film, aluminum-plated composite film, paper-plastic composite film, pure aluminum foil composite film, etc.

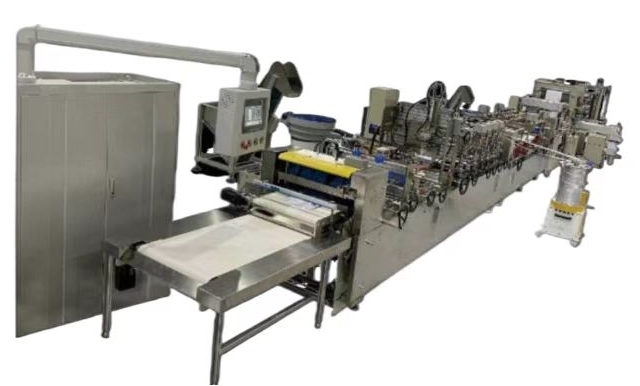

HSZLD-600 Four-side Sealing, Stand Up Pouch with Valve Bag-in Box (BIB)-making Machine
Machine Parameter
Machine function
Four sides seal, stand up pouch with mouth
Main electrical configuration
Two servo double cut knife, four traction AC servo motor, Japan Panasonic PLC with 10-British man-machine interface, touch operation, main drive for Japan Panasonic servo motor, temperature control 24 road, roll constant tension
Applicable base material
BOPP, COPP, PET, PVC, nylon and other plastic composite film, multi-layer co-extrusion film, aluminum-plated composite film, paper-plastic composite film, pure aluminum foil composite film, etc
Top beat of bag making
30 PCS/Min (depending on material, bag length and style)
Maximum feeding line speed
12M/Min (depending on material, bag length and style)
Bag size
Length: 400mm, beyond this length by double send realization (maximum 6 times send) width: 600 mm
The maximum size of the material roll
Main material Ф 800*1240 (diameter width), main material Ф 700*640 (D*W)
Positioning accuracy is≤ 0.5 mm
The maximum size of the material roll
Main material Ф 800*1240 (D*W), main material Ф 700*640 (D*W)
Positioning accuracy is≤ 0.5 mm
Number of hot sealing and cooling knives
Longitudinal seal adopts 2 groups of up and down heating, up and down cooling ,
Horizontal seal adopts 2 groups of up and down heating, 1 group of up and down cooling
V word adopts hot pressure 2 groups of up and down heating
Number of electric heat blocks
24 block
Temperature control quantity
24 Road
Temperature setting range
Room temperature ~300℃
The power of the machine
About 43 KW
Outline dimension
17000*3600*1860mm (L*W*H)
Complete machine net weight
About 7,800 KG
Color
Stainless steel, 7035 body (available to customer requirements)
Control system model
Bag-maker PLC control system
Bag-making speed
16pcs/min
Main Configuration Table of machine
Name
Spare part name
Model
Quantity
Supplier
Traction part
Pulling motor
The AC servo motor is 2 KW
4sets
Panasonic, Japan
Pneumatic component
Overall unit
Yard guest
Main motor
The AC servo motor is 4KW
1 set
Panasonic, Japan
Planet deceleration
FKS142-015S-P2-30
1 set
Taiwan
Cutting knife part
Cut knife traction motor
The AC servo motor is 2 KW
1 set
Panasonic, Japan
Knife frame traction motor
The AC servo motor is 0.75KW
1 set
Panasonic, Japan
Reduction box
Precision planetary gear reducer
1 set
China
Filling part
Frequency transformer
0.75KW
2 sets
Panasonic, Japan
Filling motor
0.55KW
1 set
China
The fold part
The folding and pulling material motor
0.55KW
One set
China
Control section
Programmable control unit
FP-X C60T
1 set
Panasonic, Japan
LCD
10-inch MI
1 set
Taiwan Weilun Tong
Solid state relay
24sets
China
Magnetic powder brake
2.5 ㎏ / 5 units 0.6 ㎏ / 2 units
7sets
China
Correction controller
AR180
1
China
Rotary encoder
7sets
China
Main photoswitch
Di si
2sets
Italy
Rectify the photoelectric switch
2sets
China
Low-voltage apparatus
Auxiliary relay
2 sets
Schneider
Machine Features
The four-side sealing, stand up pouch with valve Bag-in Box (BIB)-making machine is controlled by Panasonic PLC controlling system.
All parameters can be present on the touch screen, such as speed, bag size, temperature, counting, punching, and so on.
Full Automatic vacuum compression storage bag (space save vacuum sealed storage bag) machine is used to produce vacuum compression bag with high production speed.
Full automatic BIB bag (pouch) making machine is to use Plastic composite film such as BOPP, COPP, PET, PVC, nylon, multi-layer co-extruded film,aluminized composite film, paper-plastic composite film, pure aluminum foil composite film to produce bag in box .
High end BIB (Beverage Bag in Box )Making Machine is a new developed bag making machine in 2019. It adopts Euro hot sealing technology and it is suitable for all the hot sealing material. It can save 51% power than common type HSHZD-1300A BIB making machine. Warranty time: 2 years. More and more repeat orders from big group listed company comes!
This is air column bag making machine It is a special equipment for producing various air column bags and air cushions withstand a weight of 60 to 120 kilograms without breaking, and it is an environmentally friendly product. This kind of packaging is widely used in various fields, such as red wine bottles, toner cartridges, household appliances, logistics, etc.
IBC Liner bag making machine is suitable for Pure PE, Alu foil and all the other hot sealing material!
It adopts European hot sealing technology to reach a perfect sealing effect!
Automatic high speed vacuum compressed bag making machine is suitable for all the hot sealing material,such as LDPE, PA co- extrusion film, Composite film, Degradable film etc.
